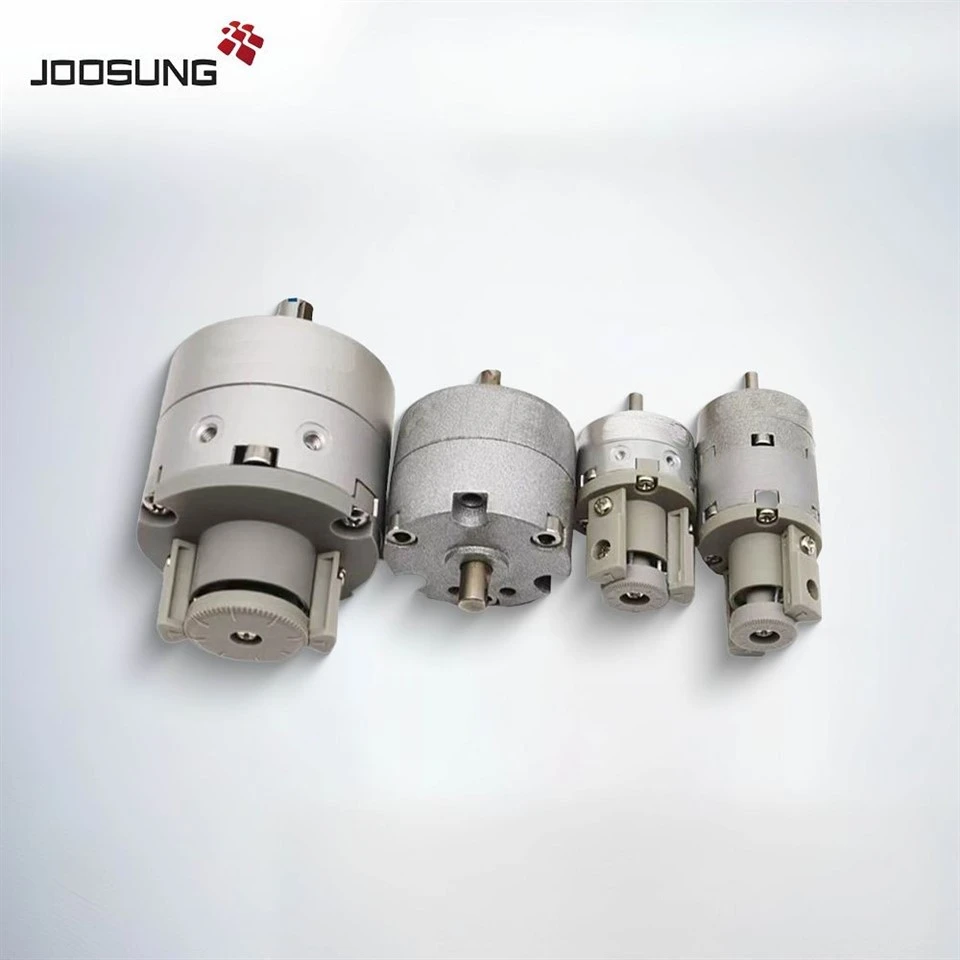

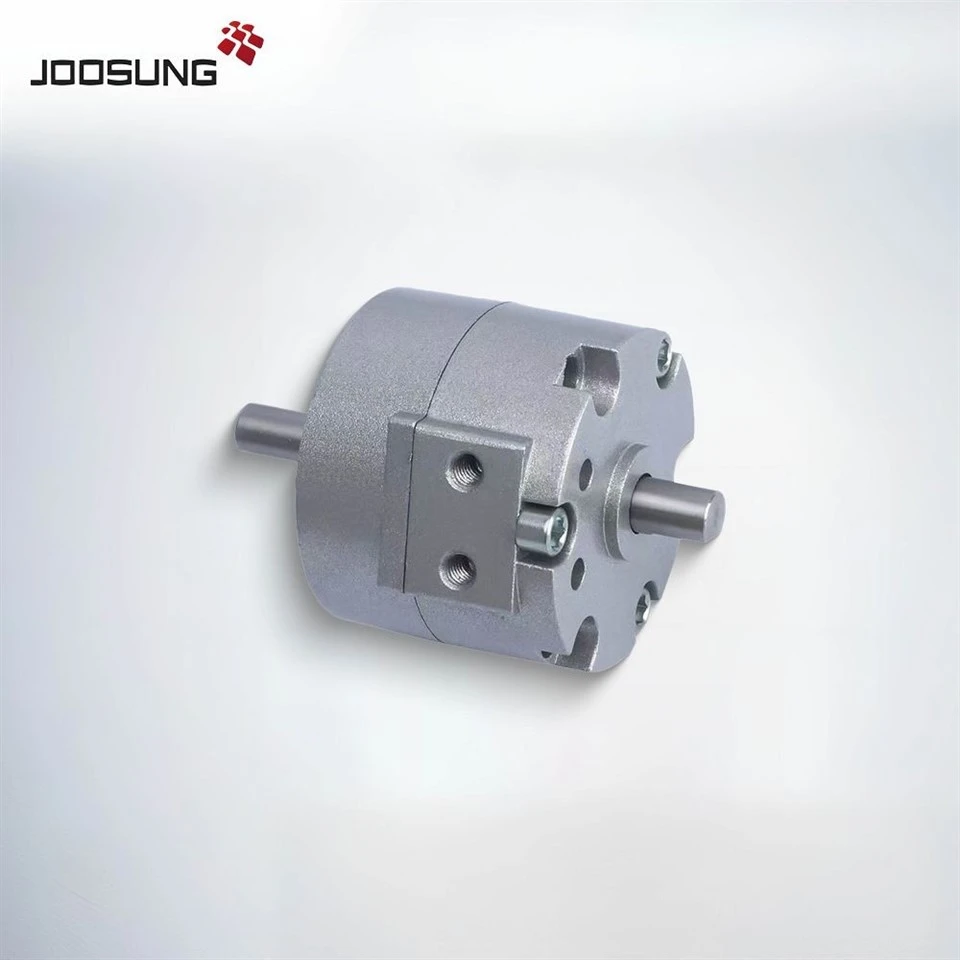

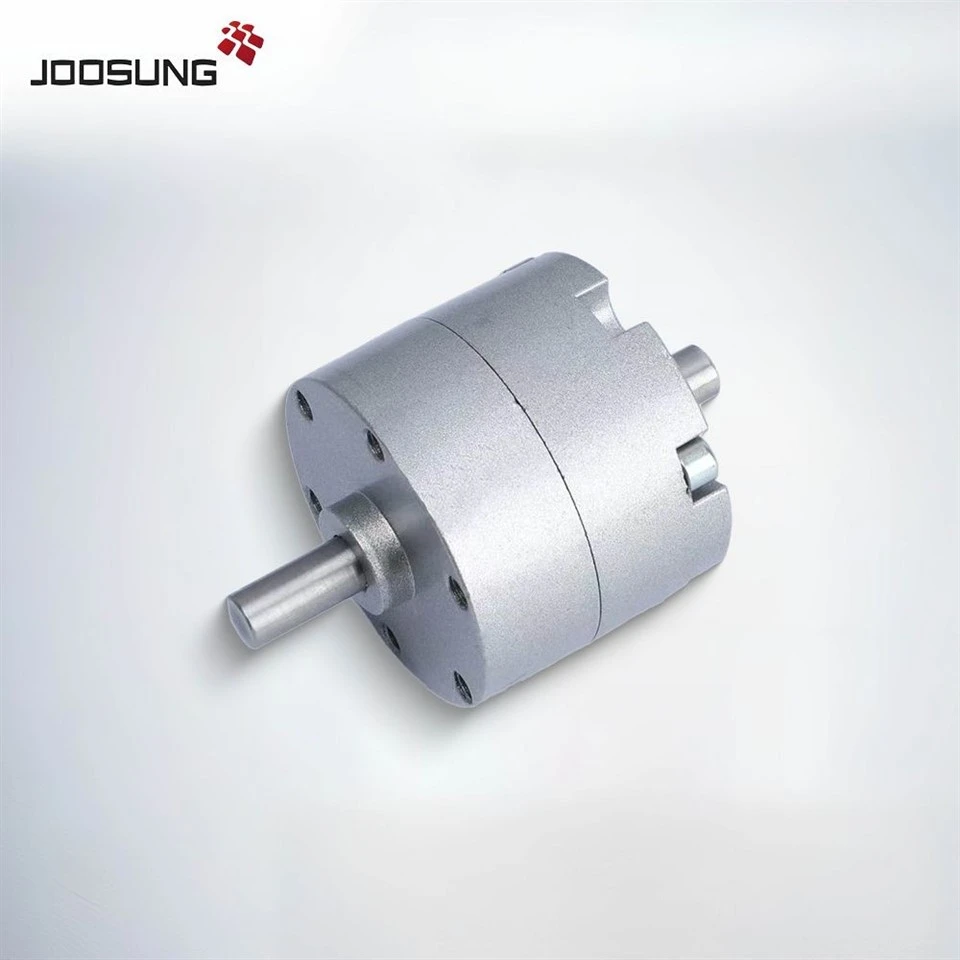

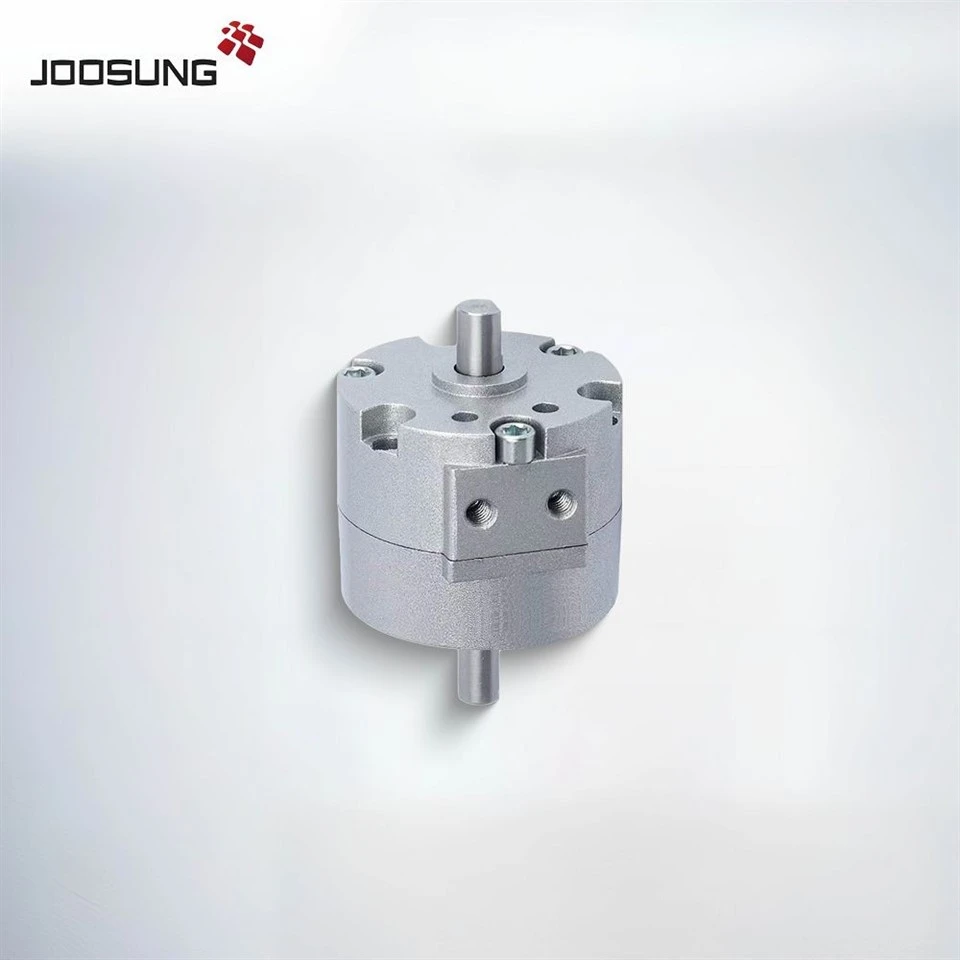

TheCRB2 Series Rotary Pneumatic Cylinderndi-yapamwamba kwambiri yopangidwirakusuntha kwa angularmu compact automation systems. Zokhala ndi athupi lophatikizana komanso lopepuka, actuator iyi imaperekamosalala -kuzungulira kozungulirandi mkulu repeatability, kupanga kukhala abwino kwazida za robotic, njira zolozera, kuyika pamisonkhano, ndi kulumikizana kwa sensa.

Likupezeka onse awirisingle vene(mpaka 190 digiri) ndikawiri kawiri(mpaka 100 digiri) mitundu, mndandanda wa CRB2 umathandizirangodya zosinthika, kuzungulira kwakunja kuyima,ndikupanga rack iwirikwa torque yowonjezera komanso yolondola. Zosinthana ndi zotsogola zapadziko lonse lapansi, zimapangidwiramoyo wautali wautumiki komanso kuphatikiza kosavuta.

Momwe Mungayitanitsa CRB2 Series Pneumatic Cylinder
CRB2	B	S				20	180			S
Mtengo wa CDRB2 ndi switch	Kukwera	Mtundu wa shaft		Shaft{0}}mawonekedwe omalizira		Bore size	Ngongole yozungulira			Mtundu wa Vane
	B: Zoyambira mtundu	Mtundu wa shaft		Mtsinje wautali	Mtsinje wamfupi
		S	Wokwatiwa	Single flat	-	10	Wokwatiwa vane	90	90 digiri	S: Wopanda vane
		W	Pawiri	Single flat	Single flat	15		180	180 digiri	S: Wopanda vane
		J	Pawiri	Shaft yozungulira	Single flat	20		270	270 digiri	D: Masamba awiri
	F: Chingwe mtundu	K	Pawiri	Shaft yozungulira	Shaft yozungulira	30	Pawiri vane	90	90 digiri
		T	Wokwatiwa	Shaft yozungulira	-	40		100	100 digiri
		Y	Pawiri	Single flat	Shaft yaitali ndi nyumba imodzi			100	100 digiri

Kuyang'ana acompact rotary actuatorndimwatsatanetsatane mwatsatanetsatane ndi ngodya chosinthika?
TheCRB2 Series Pneumatic Rotary Cylinderndiye yankho lanu loyenera kuti muyende bwino mozunguliramipata yothina.

Makona a stroke ndi ma mounting amapezeka
Thandizo la CAD ndi chithandizo chaukadaulo
Lumikizanani nafe tsopano kuti mupeze ma quotes, nthawi zotsogola, ndi zidziwitso zatsatanetsatane!

Single Vane Specifications
Kukula		10	15	20	30	40
Ngongole yozungulira		90 digiri, 180 digiri, 270 digiri
Madzi		Mpweya (Wopanda{0}}lube)
Kupanikizika kwaumboni [MPa]		1.05			1.5
Kutentha kozungulira ndi madzimadzi		5 mpaka 60 digiri
Max.operating pressure [MPa]		0.7			1.0
Min.operating pressure [MPa]		0.2	0.15
Kusintha kwa nthawi yozungulira s/90 digiri Dziwani 1)		0.03 kuti 0.3			0.04 kuti 0.3	Kuchokera 0.07 mpaka 0.5
Mphamvu zovomerezeka za kinetic [J] Note 2)		0.00015	0.001	0.003	0.02	0.04
			0.00025	0.0004	0.015	0.03
Shaft katundu [N]	Kuloleka kwa ma radial	15	15	25	30	60
	Chololeka chololera	10	10	20	25	40
Malo adoko		Mbali yojambulidwa kapena ya Axial
Kukula kwa doko (Kumbali yolumikizidwa, Axial yolumikizidwa)		M3×0.5		M5x0.8
Angle adjustable range Note 3)		0 mpaka 230 digiri	0 mpaka 240 digiri			0 mpaka 230 digiri

Mafotokozedwe a Double Vane
Kukula		10	15	20	30	40
Ngongole yozungulira		90 digiri, 100 digiri
Madzi		Mpweya (Wopanda{0}}lube)
Kupanikizika kwaumboni [MPa]		1.05			1.5
Kutentha kozungulira ndi madzimadzi		5 mpaka 60 digiri
Max.operating pressure [MPa]		0.7			1.0
Min.operating pressure [MPa]		0.2	0.15
Kusintha kwa nthawi yozungulira s90 Node¹)		0.03 kuti 0.3			0.04 kuti 0.3	Kuchokera 0.07 mpaka 0.5
Mphamvu zovomerezeka za kinetic [J]		0.0003	0.0012	0.0033	0.02	0.04
Shaft katundu [N]	Kuloleka kwa ma radial	15	15	25	30	60
	Chololeka chololera	10	10	20	25	40
Malo adoko		Mbali yojambulidwa kapena ya Axial
Kukula kwa doko (Kumbali yolumikizidwa, Axial yolumikizidwa)		M3×0.5		M5x0.8
Angle adjustable range Note 2)		0 mpaka 90 digiri

Hot Tags: crb2 series rotary pneumatic cylinder, China, ogulitsa, opanga, fakitale, makonda, ogulitsa

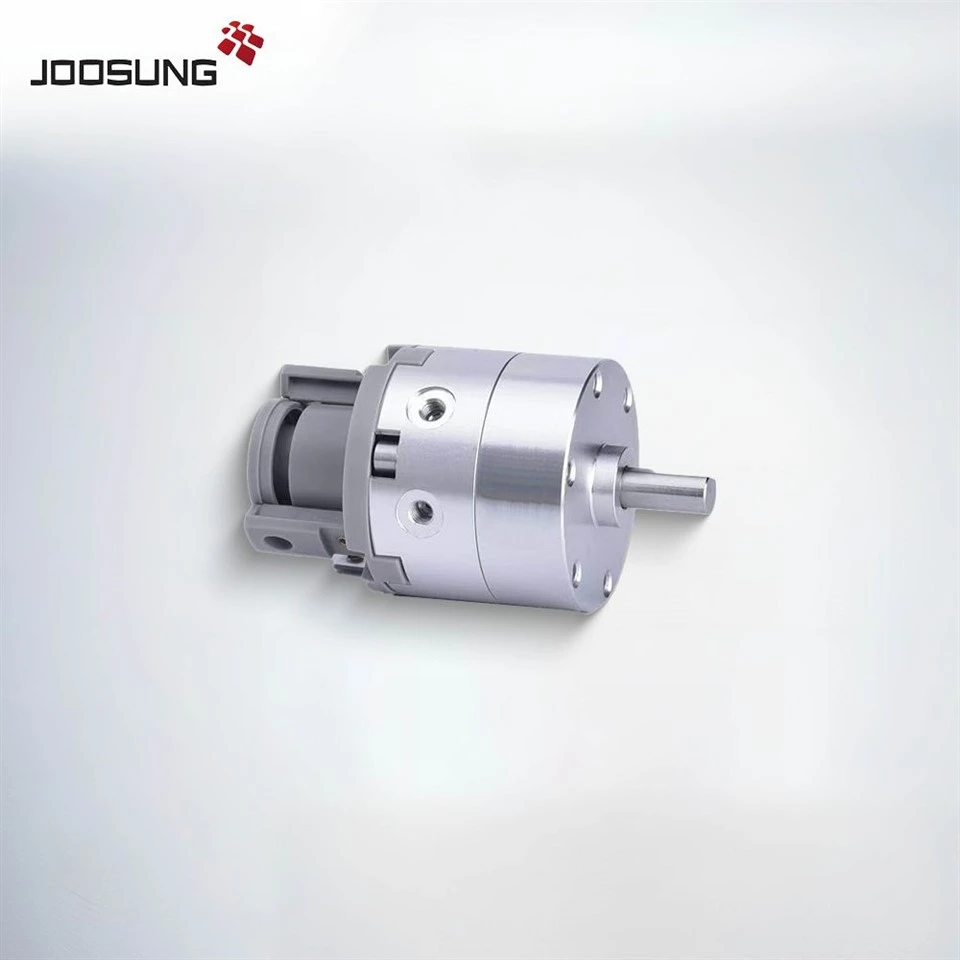

CRB2 Series Rotary Pneumatic Cylinder
