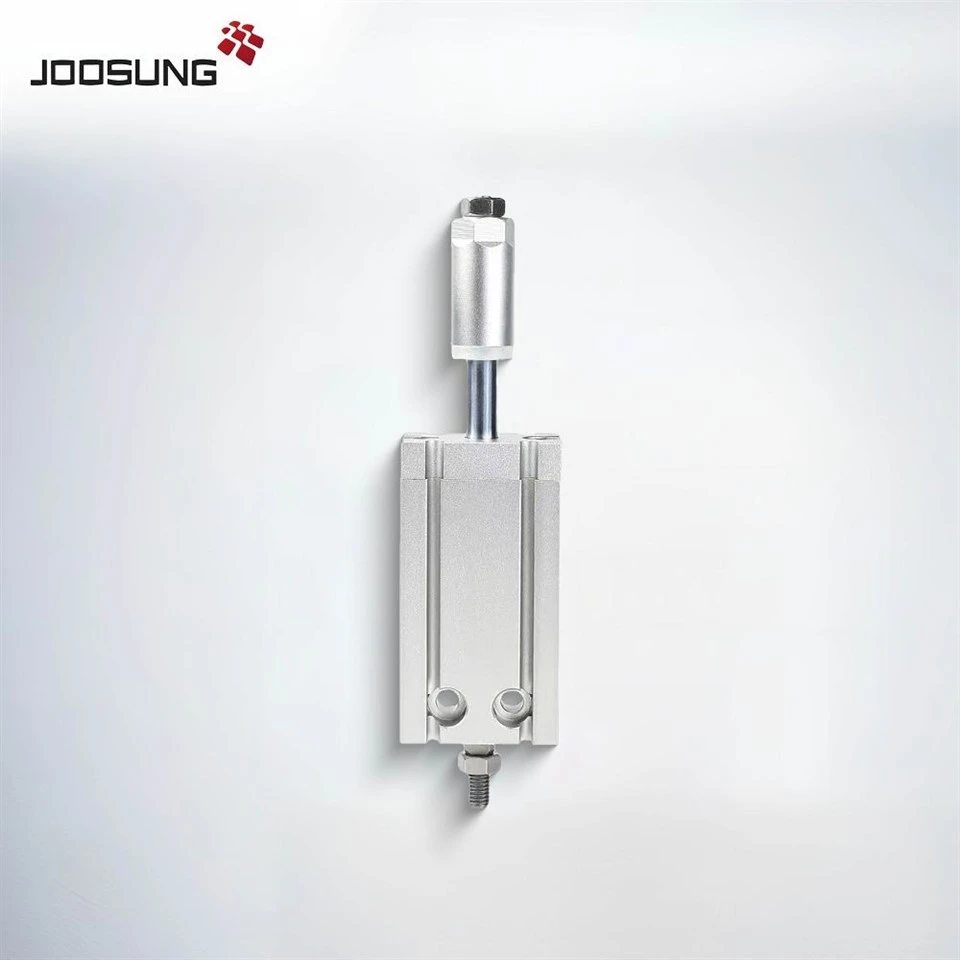

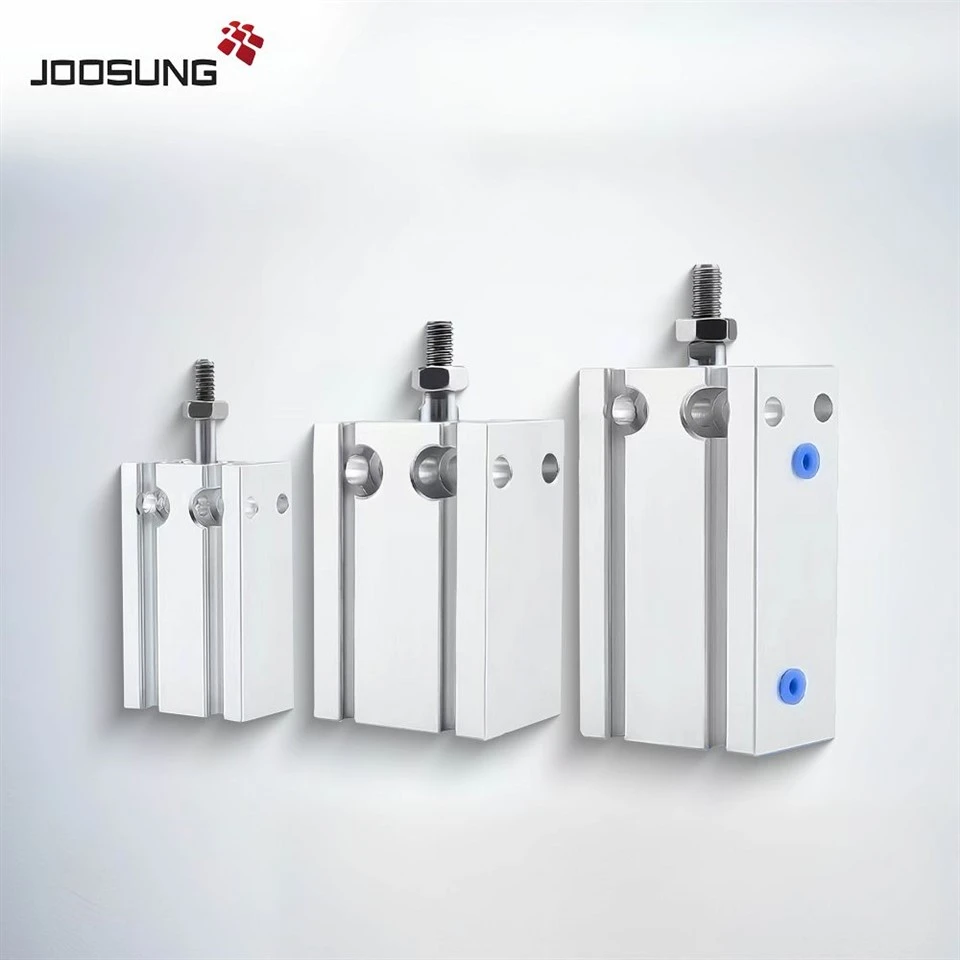

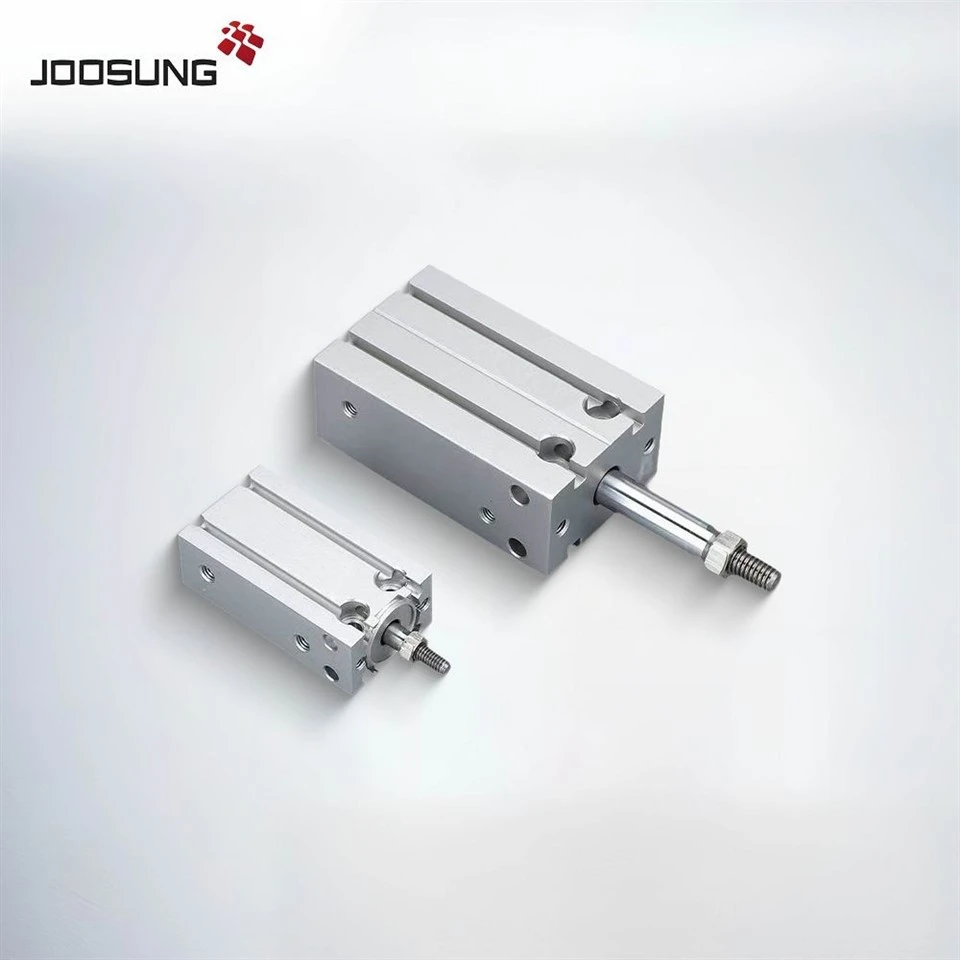

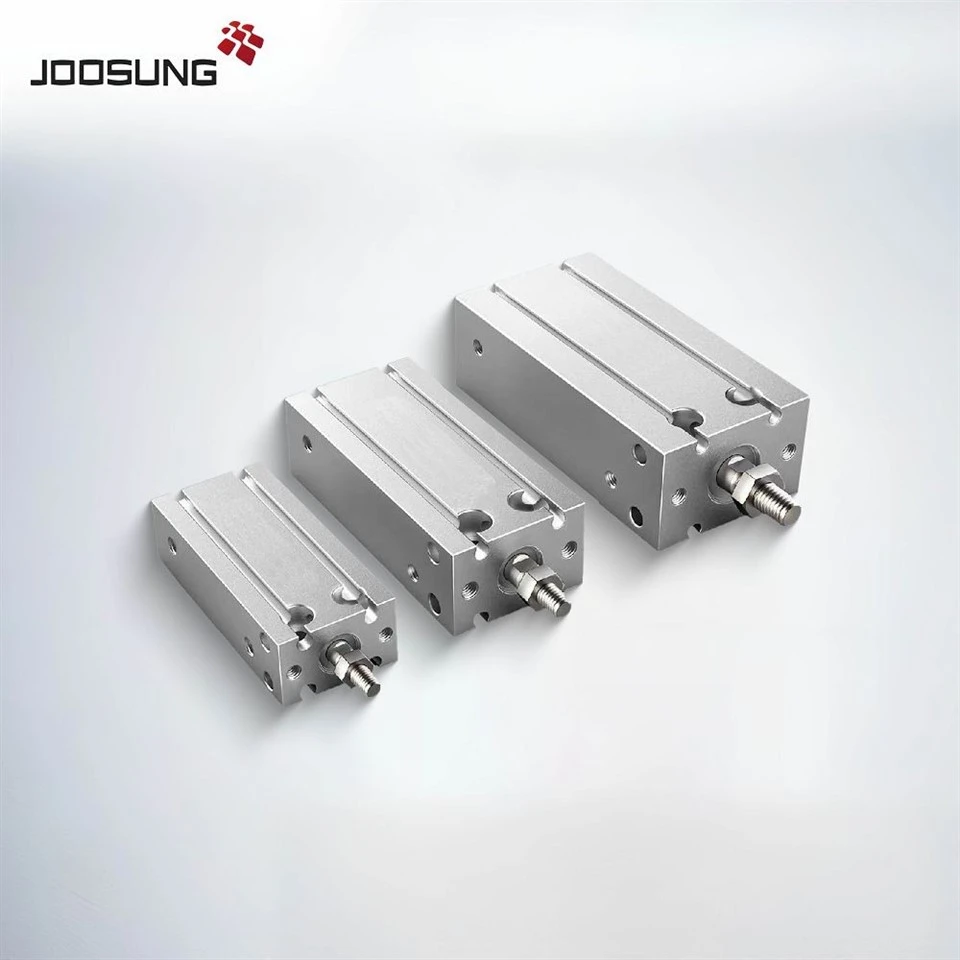

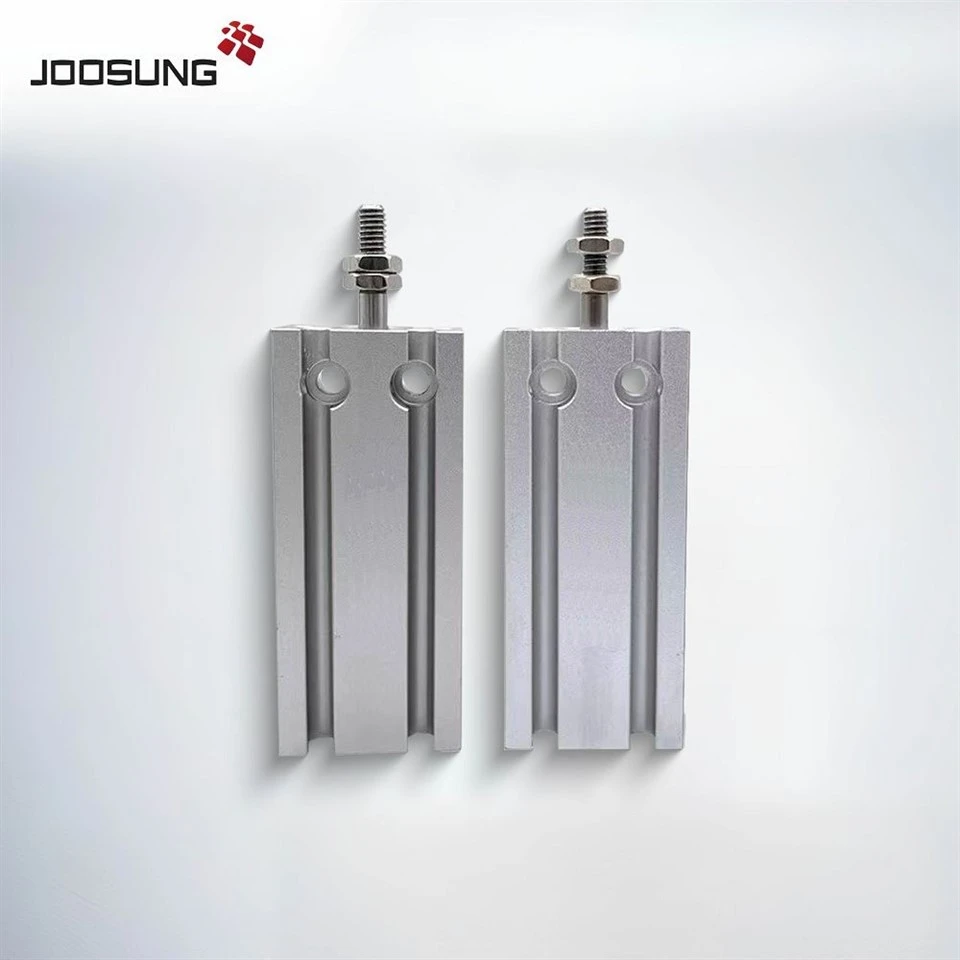

TheCDU Series Compact Pneumatic Cylinderimapangidwira mwapaderazolimba danga ntchitokumene kuya ndi kulemera kwa unsembe n'kofunika kwambiri. Zokhala ndi akutsika pang'ono komanso -kuchepa kwambiri, silinda iyi ndiyabwinozopepuka,{0}}zothamanga kwambirimu compact automation systems.
Zakelunjika{{0}pamtunda, Integrated kalozera grooves kwa masensa,ndikukonza{{0}zomanga zaulerekonzekerani-kusankhamagetsi, makina oyesera, maloboti, ndi kusankha-ndi-mayunitsi.
Ndi makulidwe kuyambiraΦ6mm kuti Φ25mm, ndi zikwapu mpaka 50mm, mndandanda wa CDU umaperekamagwiridwe antchito okhazikika komanso olondola m'malo ochepa. Zosinthana ndi miyezo yapadziko lonse lapansi ngati SMC CDU, imapezekanso muzosankha za OEM.
|
Momwe Mungayitanitsa CDU Series Pneumatic Cylinder |
|||||||
|
CU |
6 |
TN |
30 |
D |
|||
|
CDU: maginito |
Bore size |
Mtundu wa ulusi wa doko |
Standard Stroke |
Zochita |
|||
|
6,10 |
Palibe |
M5x0.8 |
⌀6,⌀10,⌀16,⌀20,⌀25 |
⌀6,⌀10,⌀16 |
5 10 15 20 25 30 |
D: Kuchita kawiri |
|
|
15,20 |
Rc 1/8 |
⌀32 |
⌀20,⌀25,⌀32 |
5 10 15 20 25 30 40 50 |
|||
|
25,32 |
TN |
NPT 1/8 |
⌀32 |
||||
|
TF |
G 1/8 |
⌀32 |
|||||
Mukuyang'ana silinda yoyendera mpweya kuti muziyenda mwachangu komanso moyenera-
TheCDU Series Pneumatic Cylinderyapangidwa kuti izichita mkatimipata yolimba komanso mikombero yofulumira.
Thandizo la OEM likupezeka pakubowola, sitiroko, ndi kukwera
Mafayilo a CAD & thandizo lachitsanzo
Lumikizanani nafe lero kuti mupeze mitengo, nthawi yotsogolera, ndi zidziwitso zatsatanetsatane!
|
Zofotokozera Zamalonda |
||||||||
|
Bore (mm) |
6 |
10 |
16 |
20 |
25 |
32 |
||
|
Ntchito Medium |
Mpweya Woyera (40μm Sefa) |
|||||||
|
Mtundu Wochita |
Kuchita Pawiri/Kungochita Kumodzi |
|||||||
|
Min Pressure |
Kuchita kawiri |
Ndodo ya piston imodzi |
0.12 |
0.06 |
0.05 |
|||
|
(Mpa) |
Ndodo ya pistoni iwiri |
0.15 |
0.1 |
0.08 |
||||
|
|
Ndodo ya pistoni iwiri |
0.18 |
0.13 |
0.11 |
||||
|
|
Sewero limodzi |
Standard |
0.2 |
0.15 |
0.13 |
|||
|
|
Osazungulira- |
0.23 |
0.18 |
0.16 |
||||
|
Kupanikizika Kwambiri |
0.7Mpa |
|||||||
|
Kutentha kwa Ntchito |
5-60 digiri |
|||||||
|
Mtundu wa Cushion |
Mtsinje wa Rubber |
|||||||
|
Kulekerera kwa Stroke (mm) |
±0.1 |
|||||||
|
Kupaka mafuta |
Osafunikira |
|||||||
|
Kuyika |
Kwaulere |
|||||||
|
Zosazungulira-zolondola |
± 0.8 digiri |
± 0.5 digiri |
||||||
|
Kukula kwa Port |
M5x0.8 |
G1/8 |
||||||
|
Series Model |
Ma Model Opezeka |
|
Chithunzi cha CDU6 |
CDU6-5D, CDU6-10D, CDU6-15D, CDU6-20D, CDU6-25D, CDU6-30D |
|
Chithunzi cha CDU10 |
CDU10-5D, CDU10-10D, CDU10-15D, CDU10-20D, CDU10-25D, CDU10-30D |
|
Chithunzi cha CDU16 |
CDU16 -5D, CDU16 -10D, CDU16 -15D, CDU16 -20D, CDU16 -25D, CDU16-30D |
|
Chithunzi cha CDU20 |
CDU20 -5D, CDU20 -10D, CDU20 -15D, CDU20 -20D, CDU20 -25D, CDU20-30D, CDU20-40D, CDU20-50D |
|
Chithunzi cha CDU25 |
CDU25 -5D, CDU25 -10D, CDU25 -15D, CDU25 -20D, CDU25 -25D, CDU25-30D, CDU25-40D, CDU25-50D |
|
Chithunzi cha CDU32 |
CDU32 -5D, CDU32 -10D, CDU32 -15D, CDU32 -20D, CDU32 -25D, CDU32-30D, CDU32-40D, CDU32-50D |
